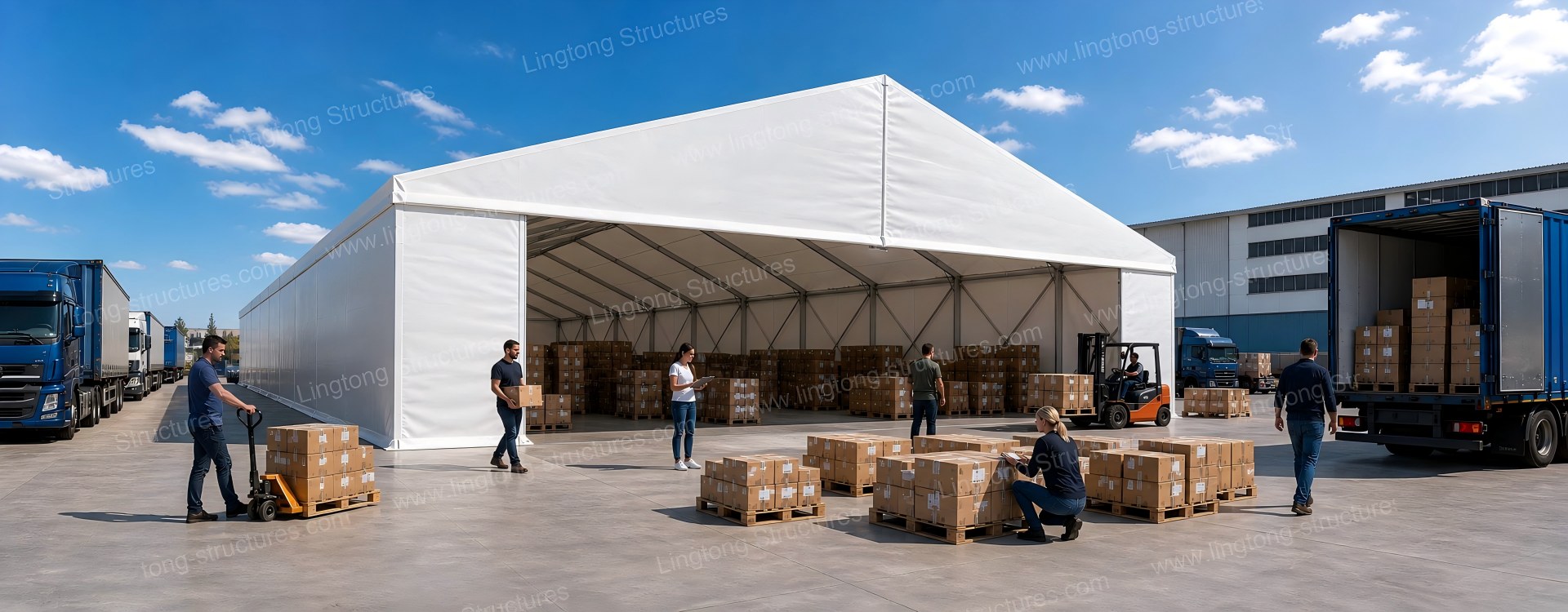

Aluminum alloy warehousing tent features a large-span column-free design with completely open interior space. The modular prefabricated system enables rapid installation and can be dismantled, relocated, and reused after use. Far more cost-effective than traditional steel warehouses, widely used for factory expansion, logistics transfer, and on-site storage.
Insufficient storage space is a common challenge for manufacturers and logistics operators. Peak season overstock, new production line launches, and lease expirations all arise suddenly – with no time to wait through months of construction. Traditional steel warehouses typically take 3-6 months from approval to delivery, often meaning the peak season has passed by the time the facility is ready. Aluminum alloy warehousing tents offer a different approach – using high-strength aluminum frames and industrial-grade PVC covers to create storage space directly on existing open ground. No foundation work, no lengthy permitting process. The modular structure can be completed in days and, when no longer needed, dismantled and relocated – keeping the asset in use rather than sitting idle.
Many first-time warehousing tent buyers ask the same question: what's the actual difference compared to a traditional steel warehouse?
| Comparison | Traditional Steel Warehouse | Aluminum Alloy Warehousing Tent |
|---|---|---|
| Construction Timeline | 3-6 months | Days to weeks |
| Cost per Square Meter | High | 40%-60% of traditional structure |
| Foundation Requirement | Requires poured concrete foundation | No ground hardening required, installs directly |
| Permitting Process | Complex (permanent structure) | Simple (temporary structure) |
| Expandability | Not expandable | 5m bay modules for unlimited extension |
| Relocation | Not movable | Fully demountable, transportable, and rebuildable |
| Interior Space | Columns present | Column-free, 100% usable space |
| Item | Specification |
|---|---|
| Frame Material | 6061-T6 high-strength aluminum alloy, anodized anti-corrosion treatment |
| Cover Material | Double-coated PVC scrim fabric, waterproof, flame-retardant, UV-resistant, self-cleaning, 850g/m² |
| Span Range | 10-50 meters (customizable) |
| Length | 5m bay modules for unlimited length extension |
| Clear Height (Eave Height) | 4-8 meters (customizable) |
| Wind Resistance | Up to 120 km/h |
| Snow Load | Up to 1.5 kN/m² |
| Frame Service Life | 15-20+ years |
| Cover Service Life | 5-10 years |
| Anchoring | Expansion bolts / Ground stakes / Ballast weights |
Factory storage: raw materials, semi-finished goods, finished products – flexible capacity expansion

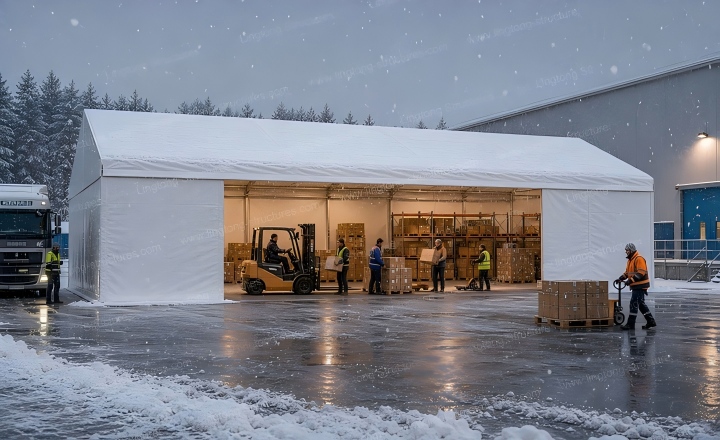

Logistics transfer: e-commerce warehousing, courier sorting, cross-border cargo staging
Construction sites: weather protection for building materials and equipment

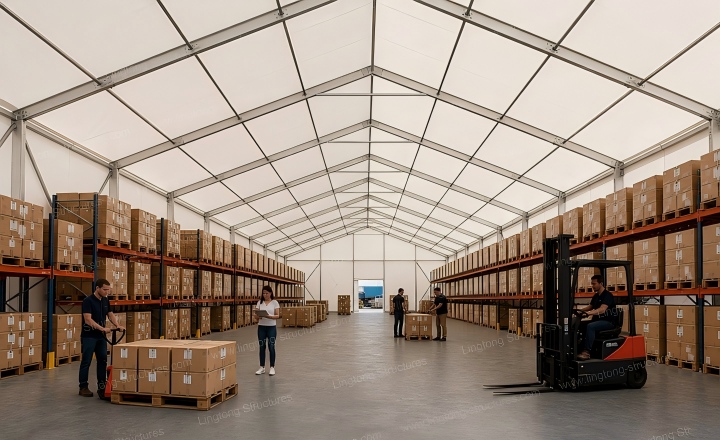

Port yards: container storage, open-air cargo protection
Production expansion: temporary production lines, semi-finished processing areas
Seasonal storage: agricultural products, peak season inventory preparation, and other temporary storage needs
Roll-up doors / sliding doors, transparent PVC sidewalls, insulated roof panels, ventilation systems, LED lighting systems, gutter drainage systems, wind reinforcement kits.
A warehousing tent is an industrial-grade structure built with high-strength aluminum frames and industrial PVC fabric, verified through structural mechanics calculations. Its wind and snow load resistance meets permanent building standards – entirely different from ordinary recreational tents.
No. The tent can be installed directly on grass, sand, gravel, or concrete surfaces without a foundation. For long-term use, simple ground treatment can be added as needed.
Yes. The large-span column-free design provides completely open interior space, allowing high-bay shelving and forklifts to operate freely – fully compatible with industrial storage requirements.
Depending on project scale, typically days to weeks – significantly faster than traditional steel warehouses.
Industrial-grade PVC fabric has a normal service life of 5-10 years. When it reaches the end of its life, only the cover needs replacement – the aluminum frame continues in use, keeping long-term costs low.
Yes. The modular design allows complete disassembly, transport to a new site, and reassembly – this is a core advantage of prefabricated warehousing tents.
Founded in 1997, Lingtong Tent has 29 years of experience in aluminum alloy tent manufacturing. We operate a 20,000 sqm standardized production facility with daily capacity of 10,000 sqm and annual capacity exceeding 10 million sqm. Our products hold ISO9001 quality management certification and CE structural safety certification, meeting safety standards across more than 200 countries and regions. From aluminum profile extrusion, CNC cutting, and fabric welding to assembly and inspection, the entire production chain is completed in-house. We support full-size customization and OEM/ODM services, providing end-to-end support from site surveying, CAD drawings, and 3D renderings to production, packaging, shipping, and installation guidance. Our products are exported to over 200 countries and regions, with extensive project installations at ports, logistics parks, and factories worldwide. Send us your site dimensions and requirements – we'll provide a free layout plan and quote.
